Heavy Duty Drawer Slides: A Complete Guide to Load Capacity and Durability Testing

Introduction

Heavy duty drawer slides are essential components in modern furniture and industrial equipment, responsible for both bearing weight and ensuring smooth drawer movement. With growing functional demands across industries, expectations for drawer slide weight capacity and durability have significantly increased. This guide offers a comprehensive overview of the definitions, classifications, testing methods, and industry standards related to heavy duty drawer slides, helping B2B buyers, engineers, and manufacturers make informed decisions.

What Are Heavy Duty Drawer Slides?

Definition:
Heavy duty drawer slides are sliding mechanisms designed to carry heavy loads and maintain smooth operation. Made primarily from steel or aluminum, they are used in furniture, office systems, medical devices, and industrial storage units. They typically support weights ranging from 50 kg up to 250 kg or more.

Key Characteristics:

Types of Heavy Duty Drawer Slides

By Material:

• Metal Slides: Made from cold-rolled steel, high durability, suitable for frequent use
• Plastic Slides: Lighter and cheaper, ideal for light-duty applications

By Size & Load Rating:

By Slide Mechanism:

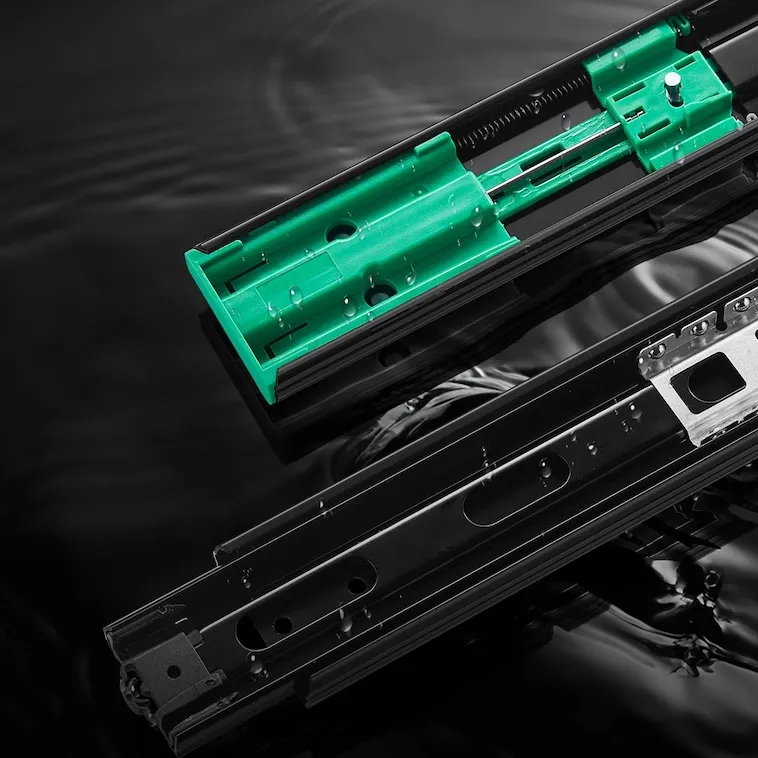

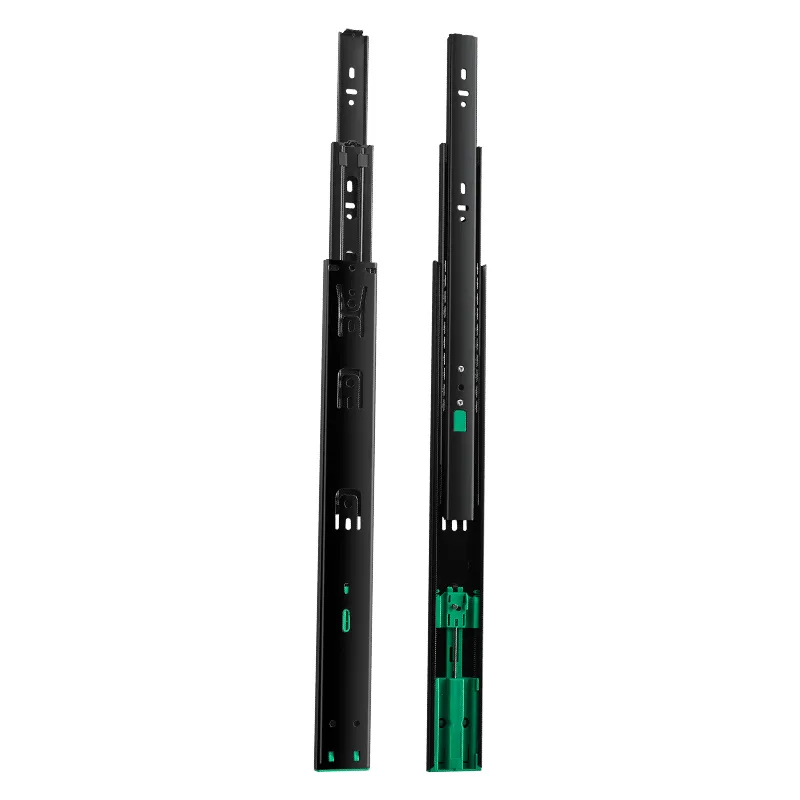

• Ball-Bearing Slides: Smooth, strong, suitable for high-performance needs
• Roller Slides: Lower cost, basic operation, less durable

Load Capacity Testing Methods

Testing the drawer slide weight capacity is crucial to ensure structural reliability. Common tests include:

Vertical Static Load Test:

• Applies vertical weight to fully extended drawers
• Evaluates deformation, joint strength, and failure thresholds

Horizontal Side Load Test:

• Simulates lateral stress during drawer movement
• Ensures slides remain aligned under side force

Deflection (Sag) Test:

• Measures drawer drop under weight
• Less deflection = stronger support and user confidence

Load Bearing Test:

• Real-world load placed in the drawer
• Checks for bend, breakage, or glide disruption

Durability Testing Methods

Cycle Testing:

• Repeated opening and closing (e.g., 50,000 cycles)
• Assesses internal structure and coating wear

Forceful Operation Test:

• Simulates aggressive user actions (slamming)
• Validates product resilience under harsh conditions

Friction Wear Test:

• Measures change in glide resistance over time
• Lower friction values = longer lifespan

Open/Close Frequency Test:

• Evaluates the total lifespan based on repeated use

Industry Standards for Heavy Duty Drawer Slides

Test criteria often include:

• Vertical load
• Horizontal displacement
• Deflection control
• Cycle count under load
• Anti-corrosion performance

Application Scenarios

Residential Furniture:

• Kitchen cabinets, wardrobes, bookshelves

Office Systems:

• Filing cabinets, desks, and meeting tables

Retail & Commercial:

• Display racks, POS counters, and commercial elevators

Industrial & Automotive:

• Machine drawers, RV storage, control panels, server racks

How to Choose Reliable Heavy Duty Drawer Slides

Conclusion

Heavy duty drawer slides are indispensable in environments where high load-bearing and durability are mission-critical. Understanding drawer slide weight capacity, test methods, and performance standards is key to sourcing quality products. Always look for manufacturers who provide verified data and certified test results.
